DINGLI JCPT0607DCH-XD

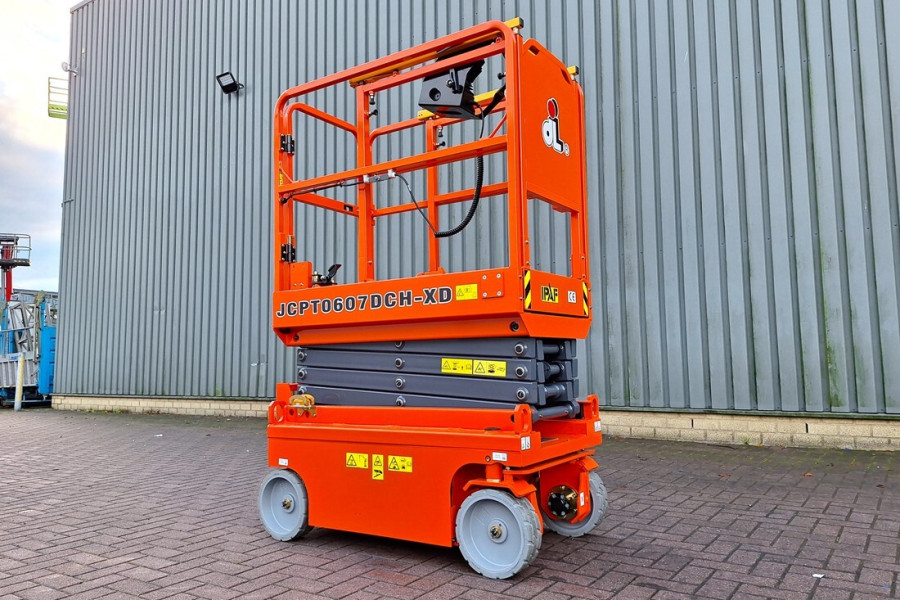

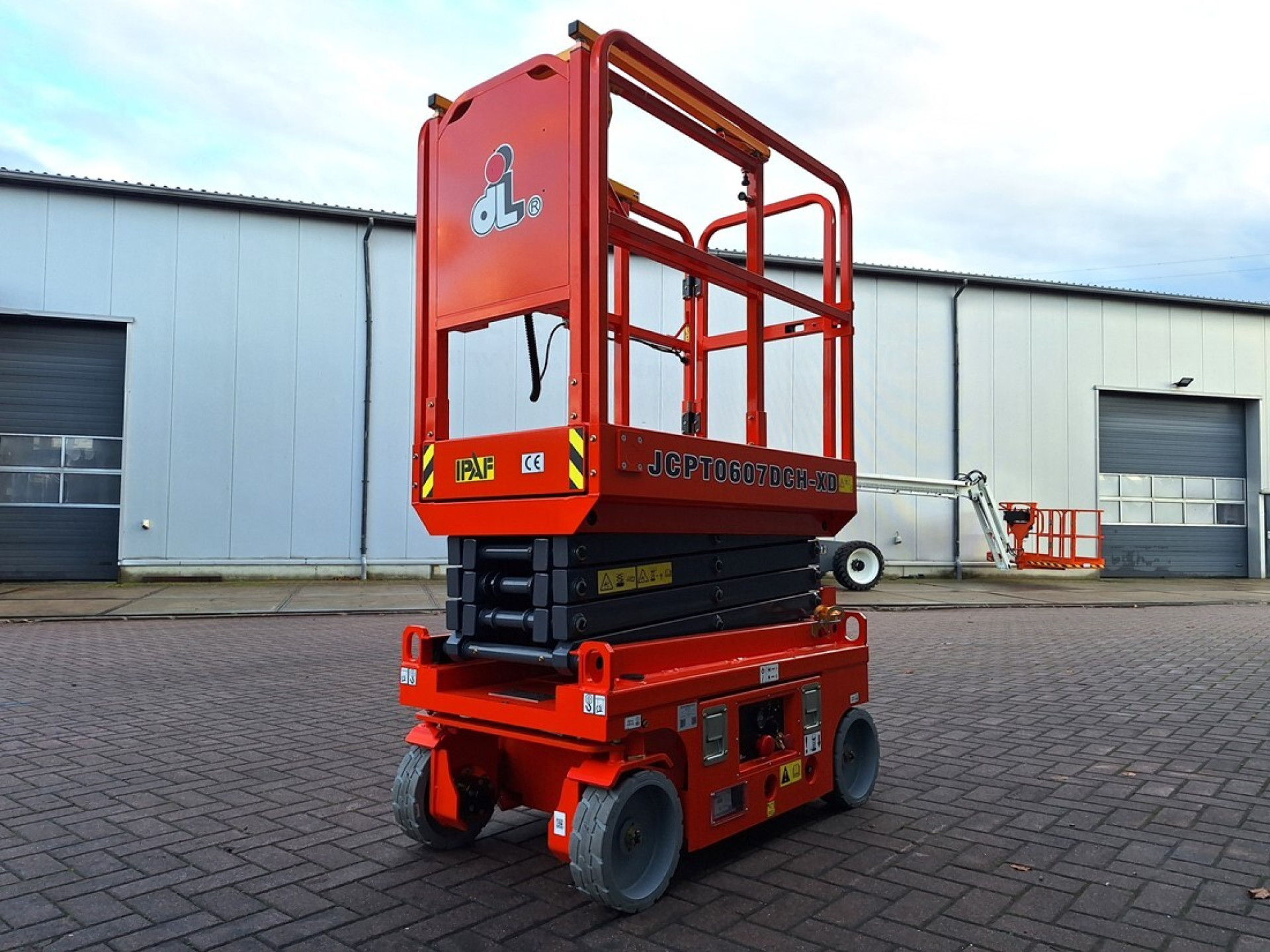

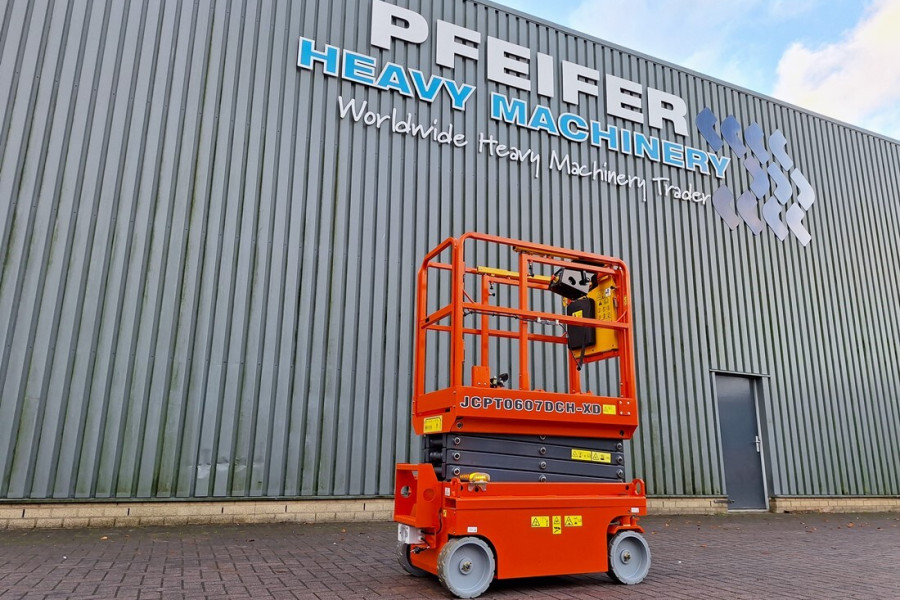

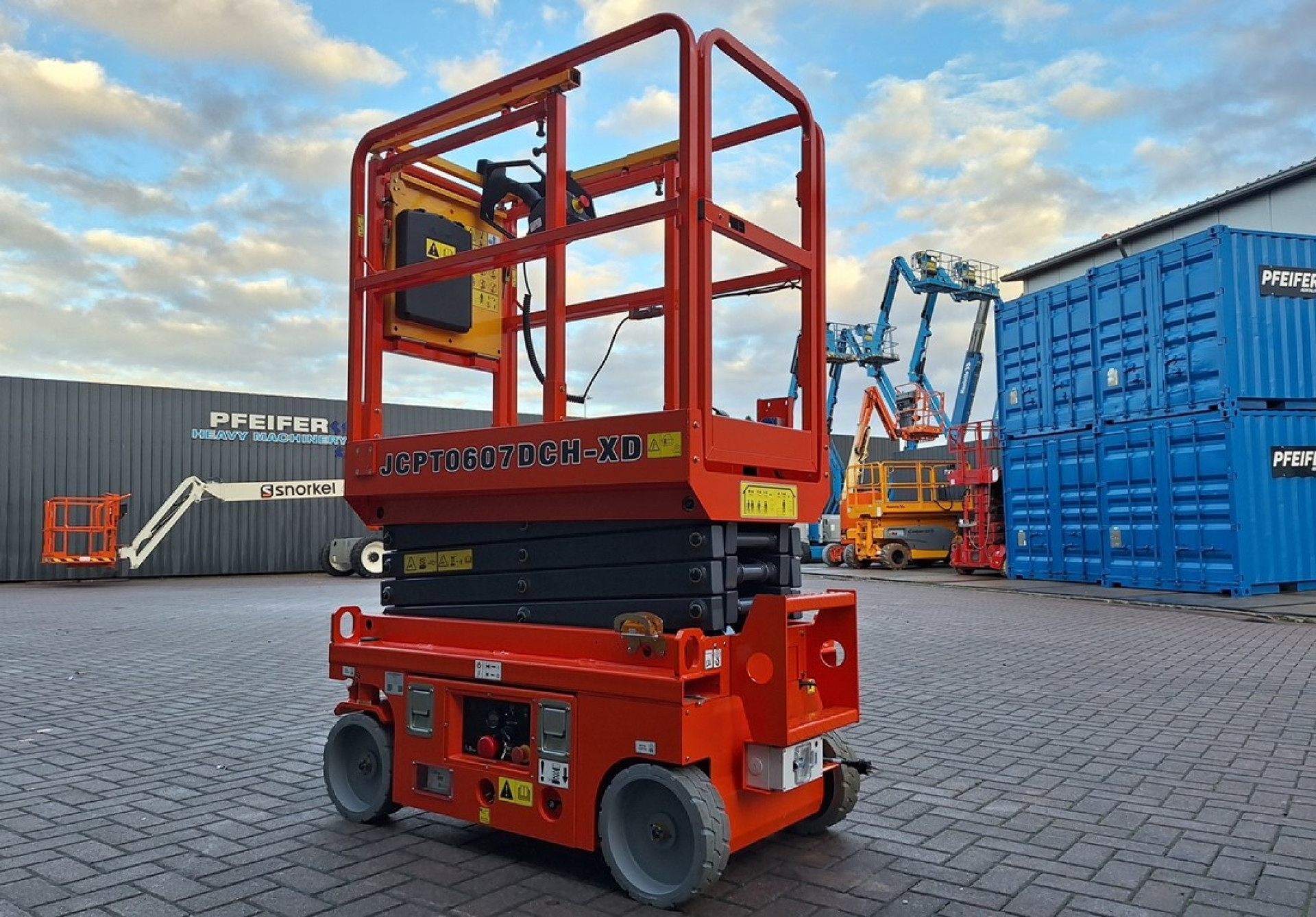

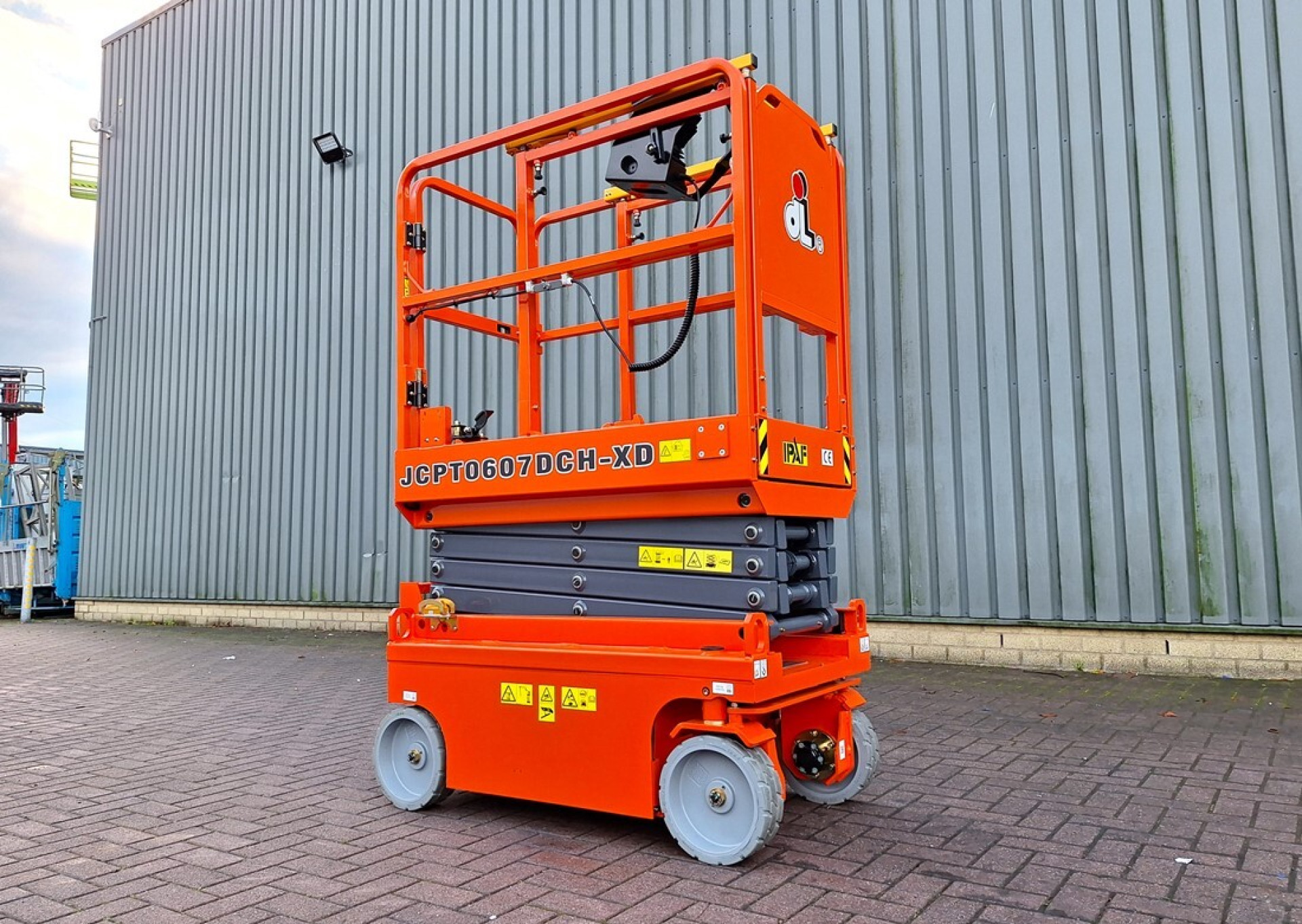

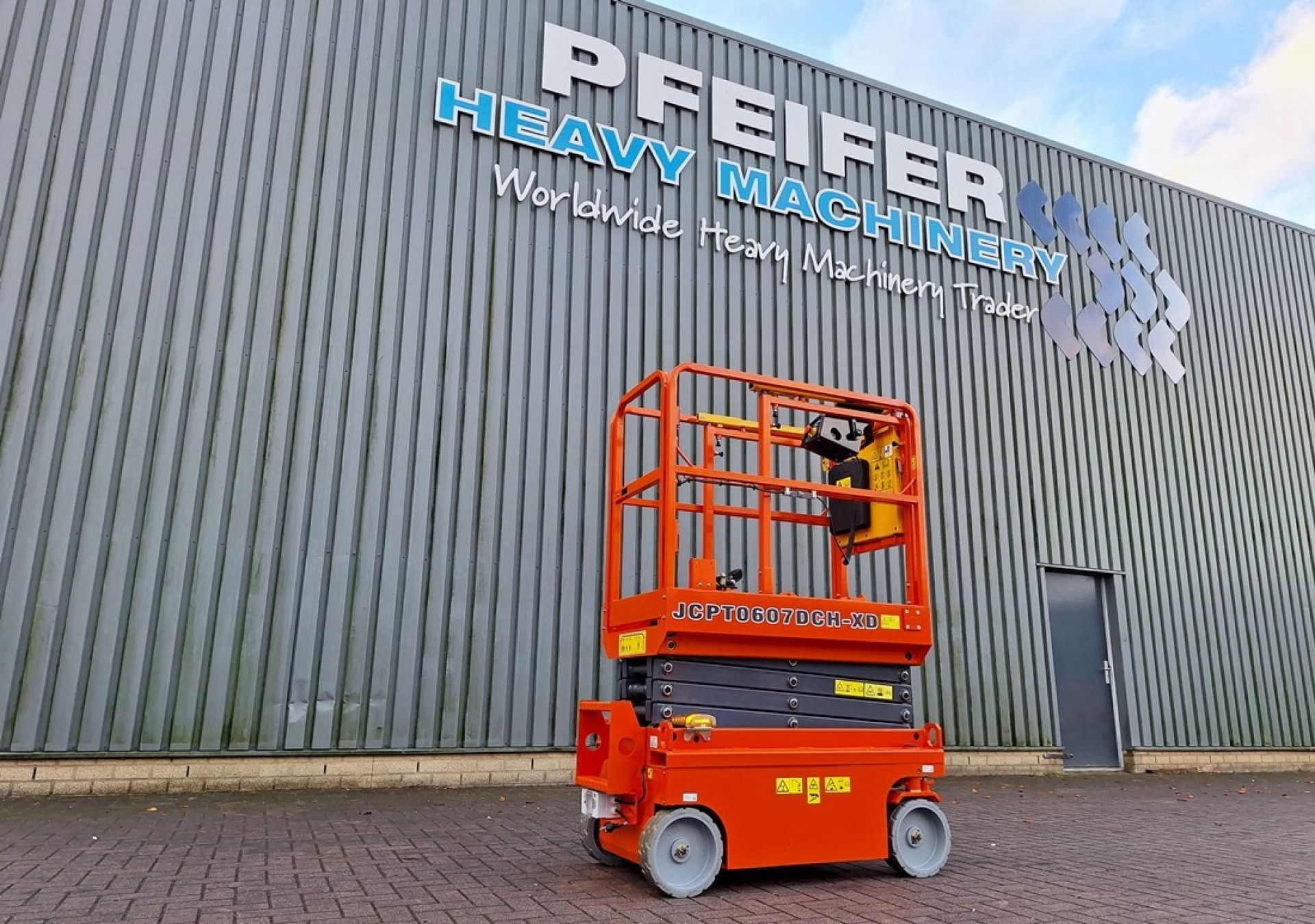

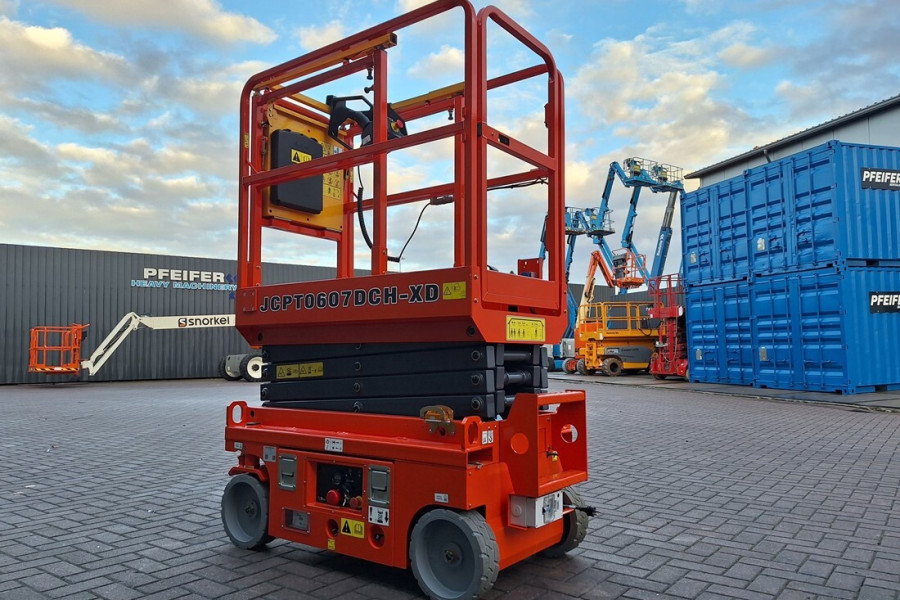

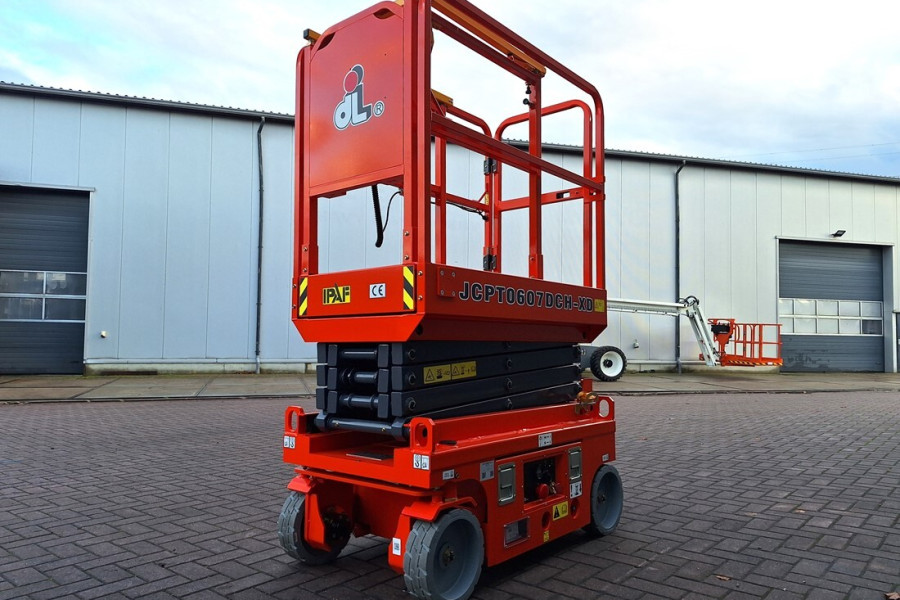

NEW / UNUSED Dingli JCPT0607DCH-XD ELECTRIC MINI SCISSOR.
This Dingli JCPT0607DCH-XD has a valid inspection and can be sold with warranty. Inform about our conditions!

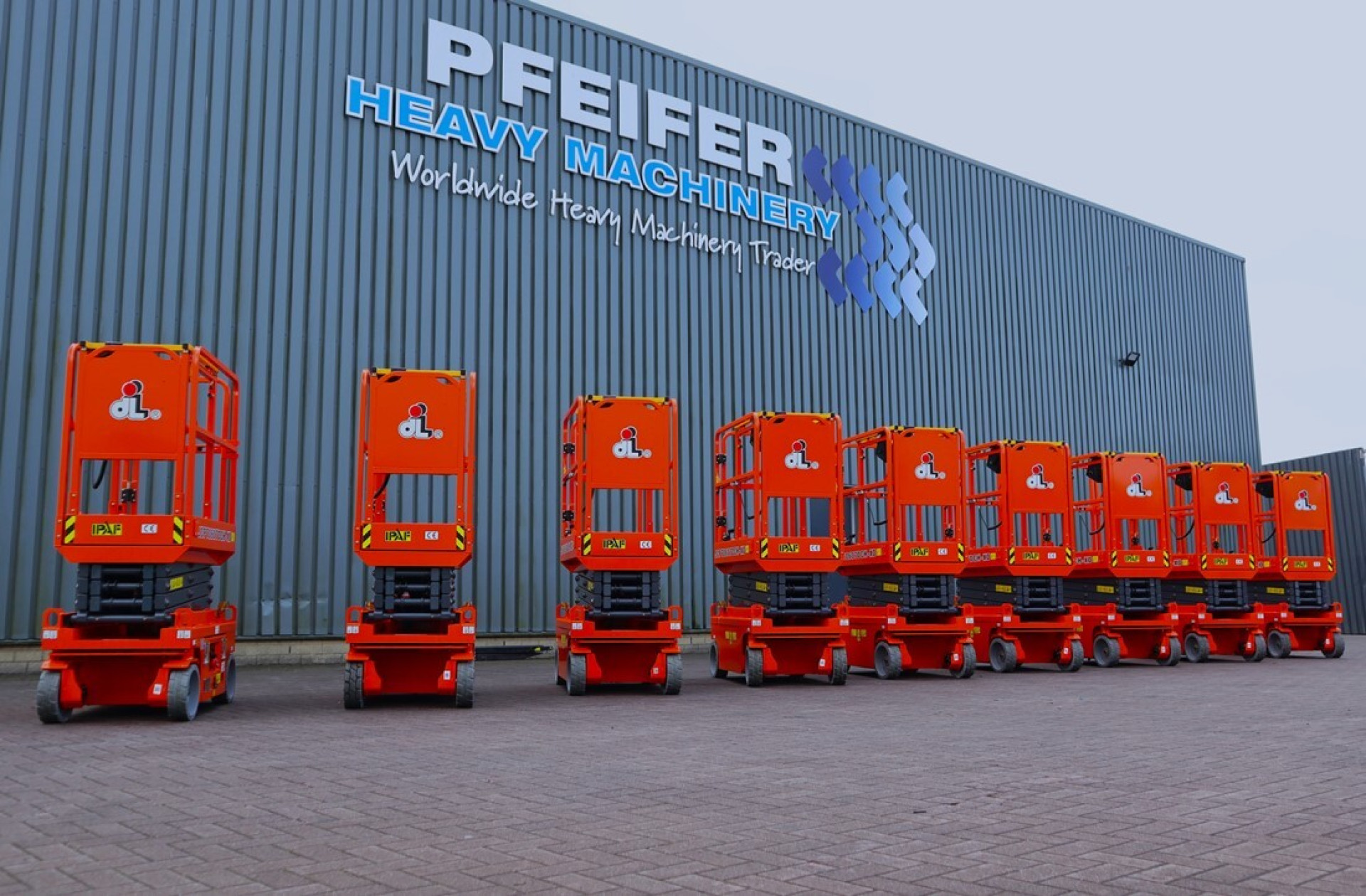

Wide range of Dingli scissor lifts — in stock and ready for immediate delivery!

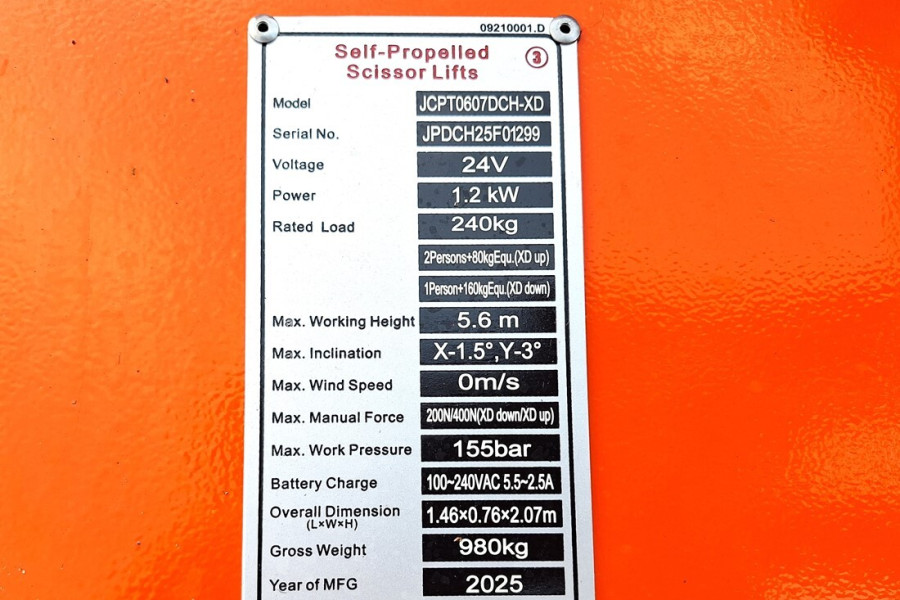

Manufacturer: Dingli

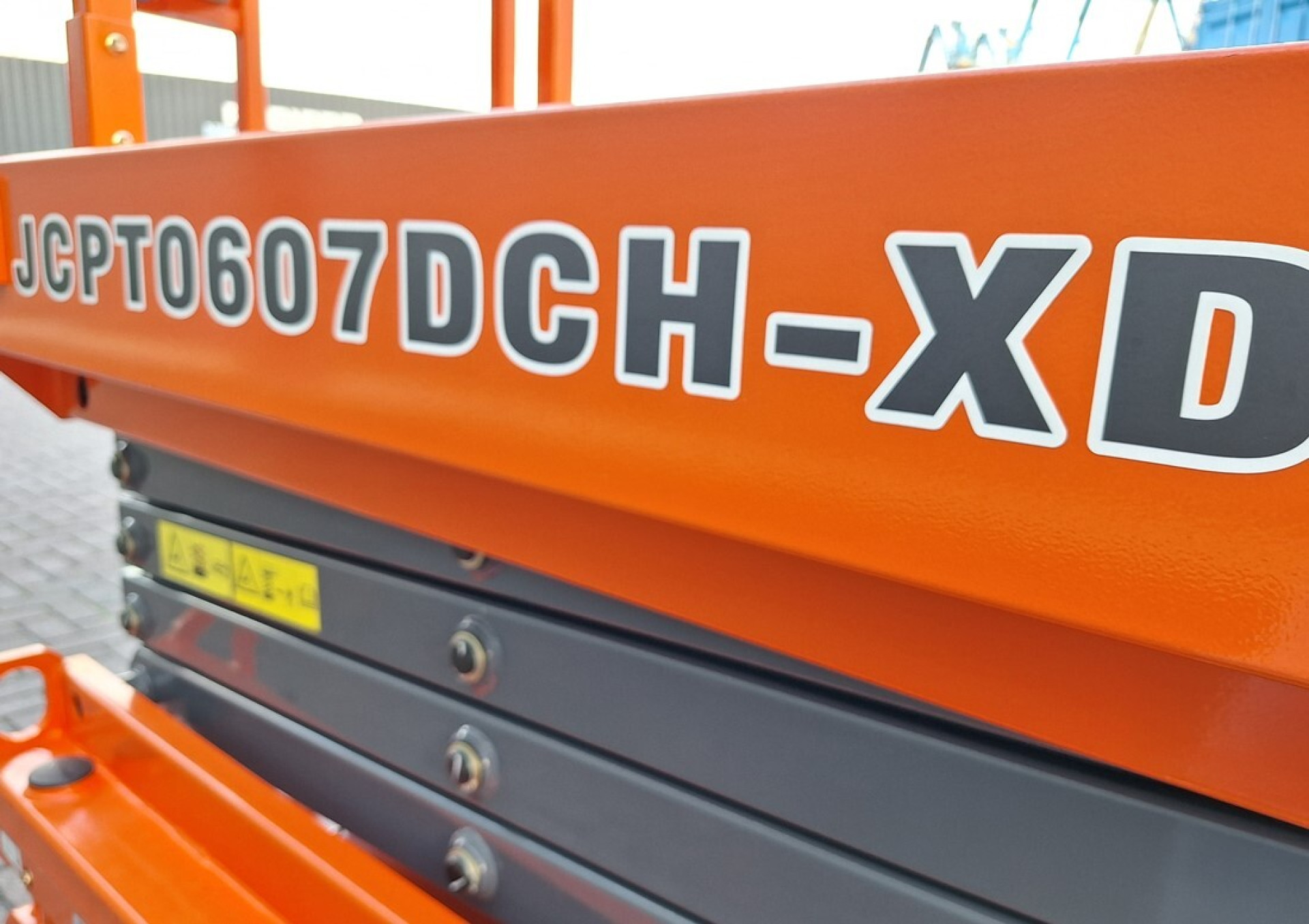

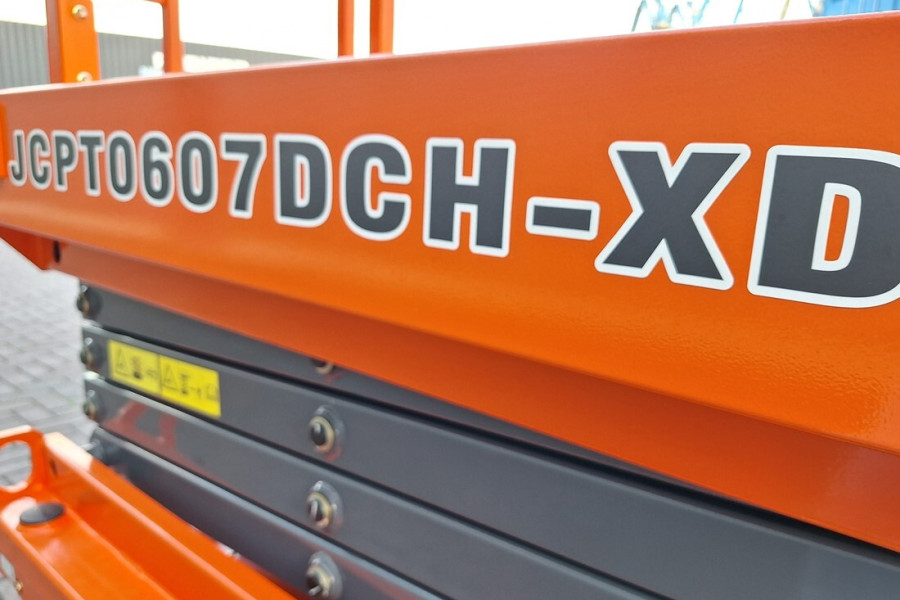

Typ: JCPT0607DCH-XD
Manuf. Year: 2025
Fuel: Electric

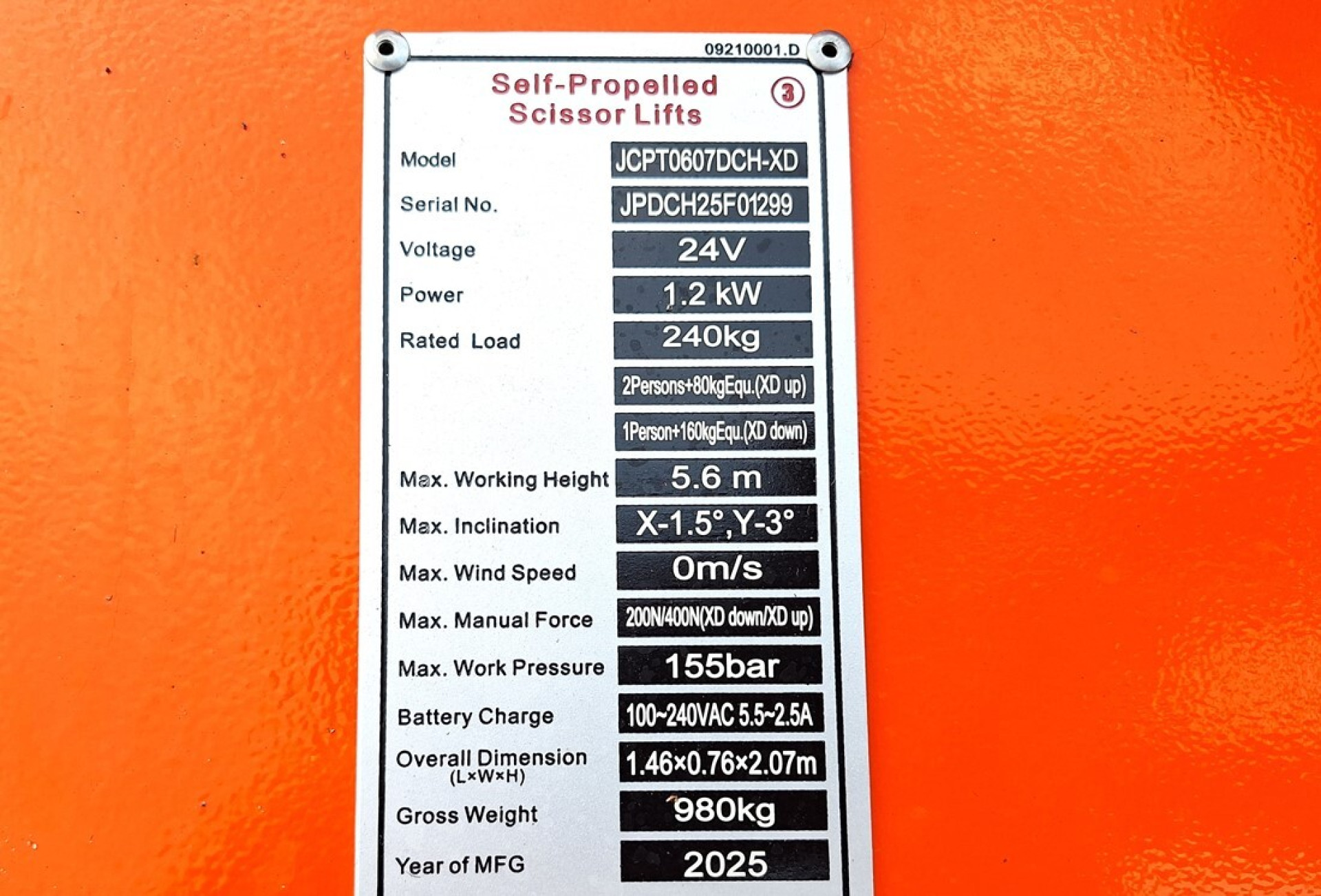

Serial number: JPDCH25F01299

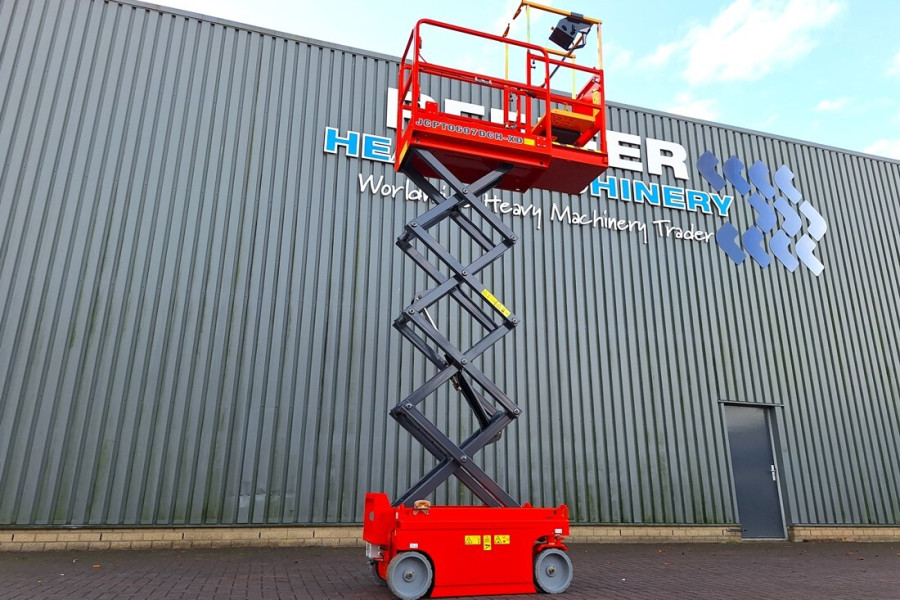

Max. Working Height: 5.60m
Drivable At Full Height

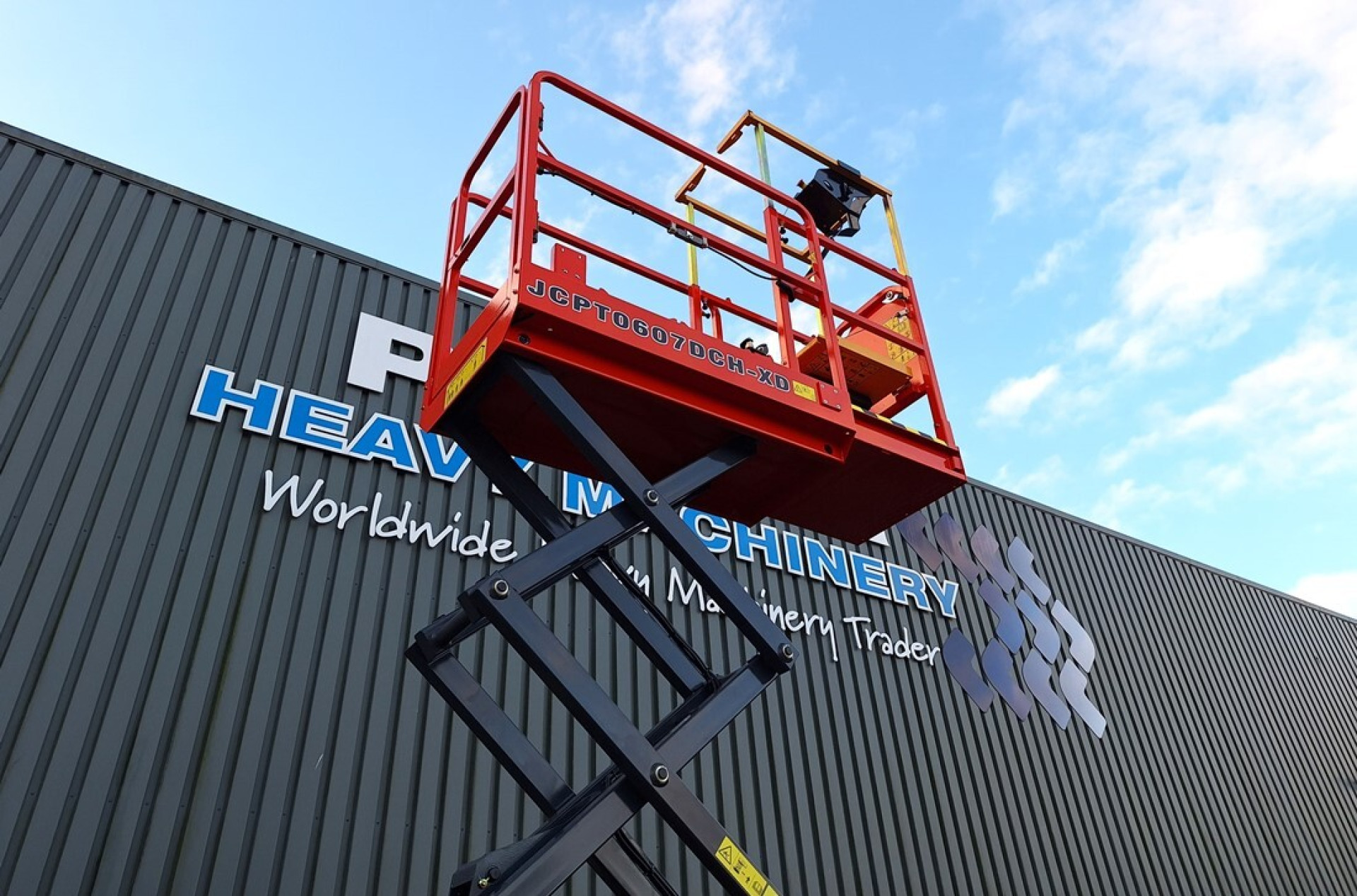

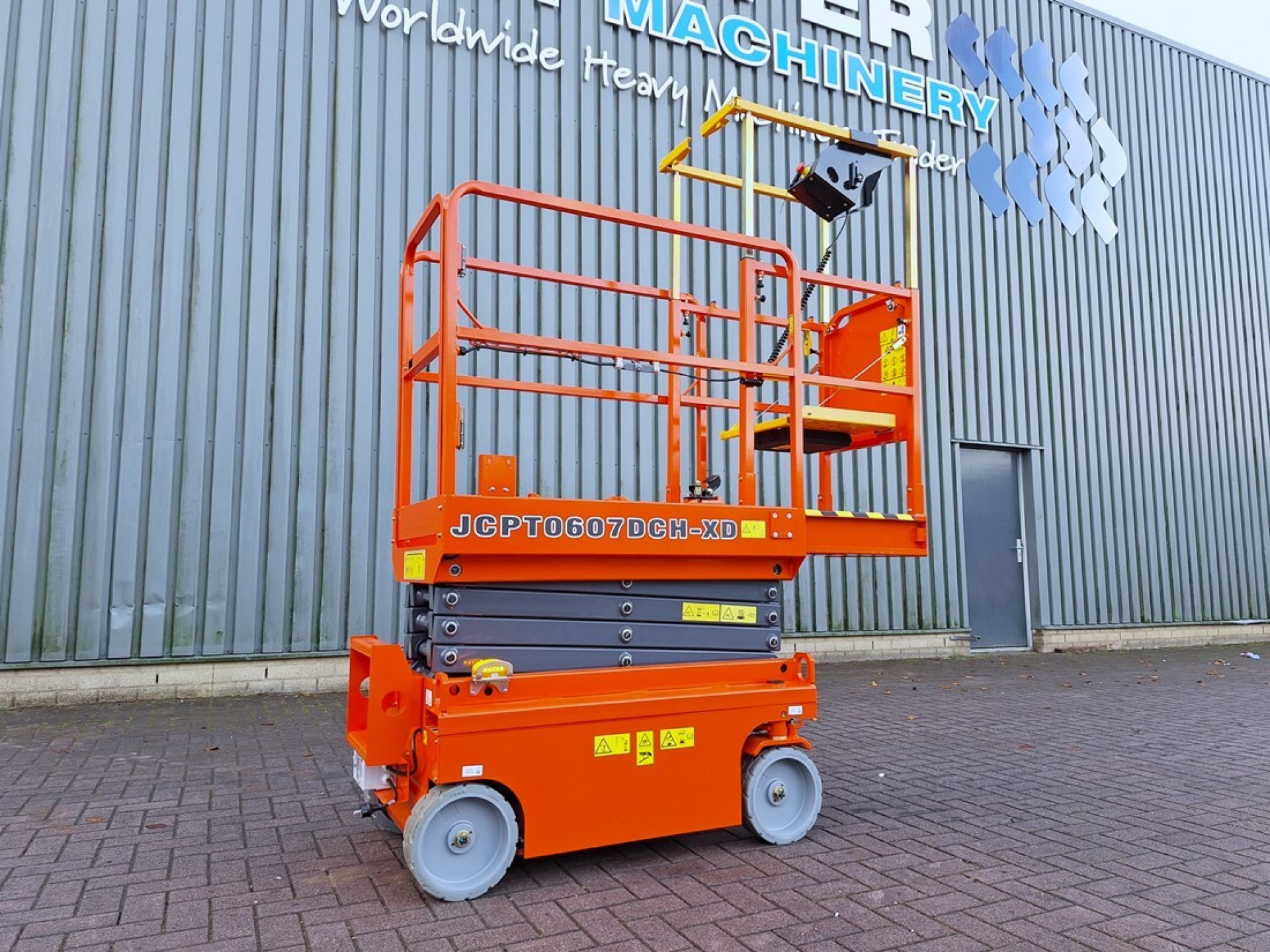

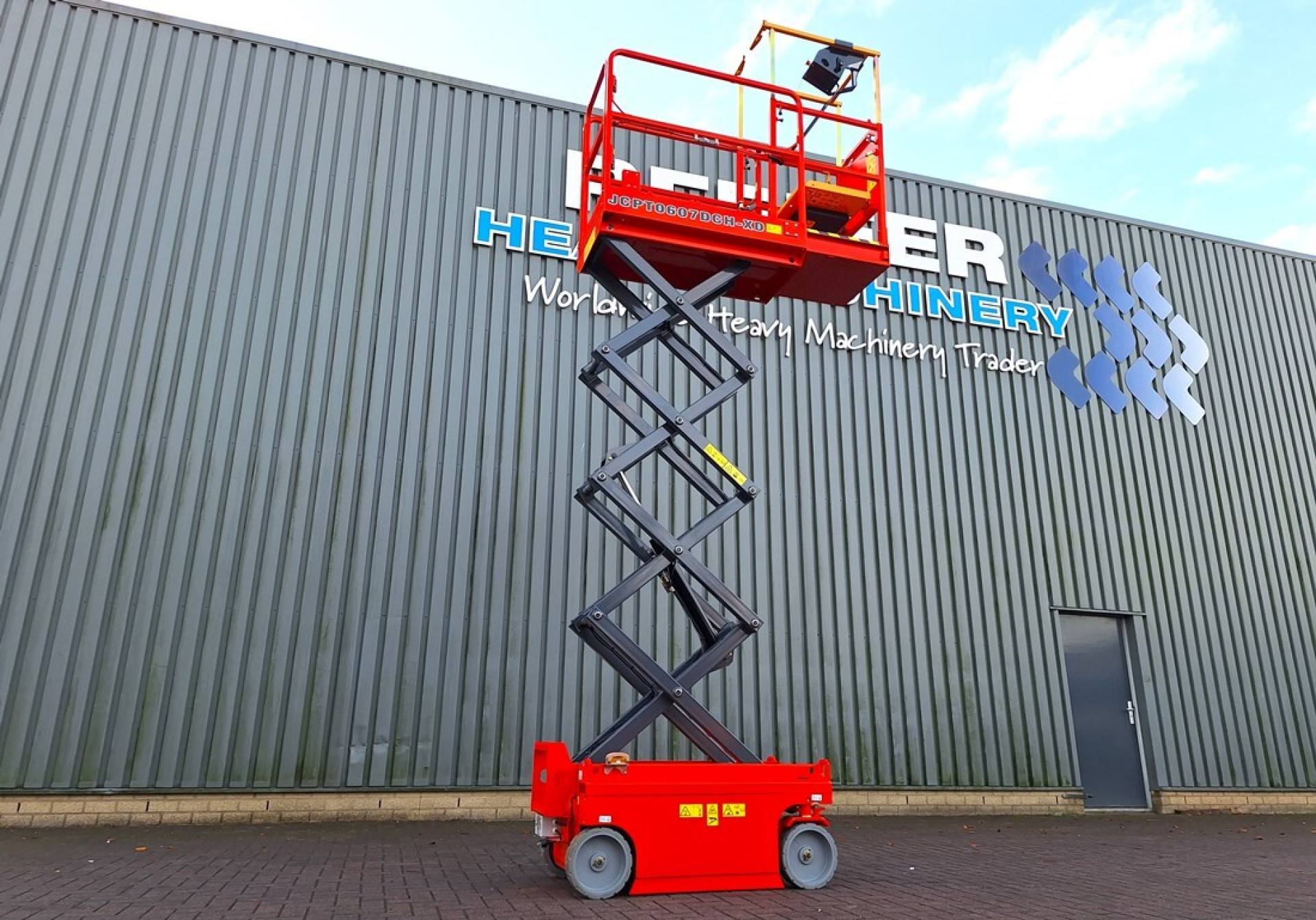

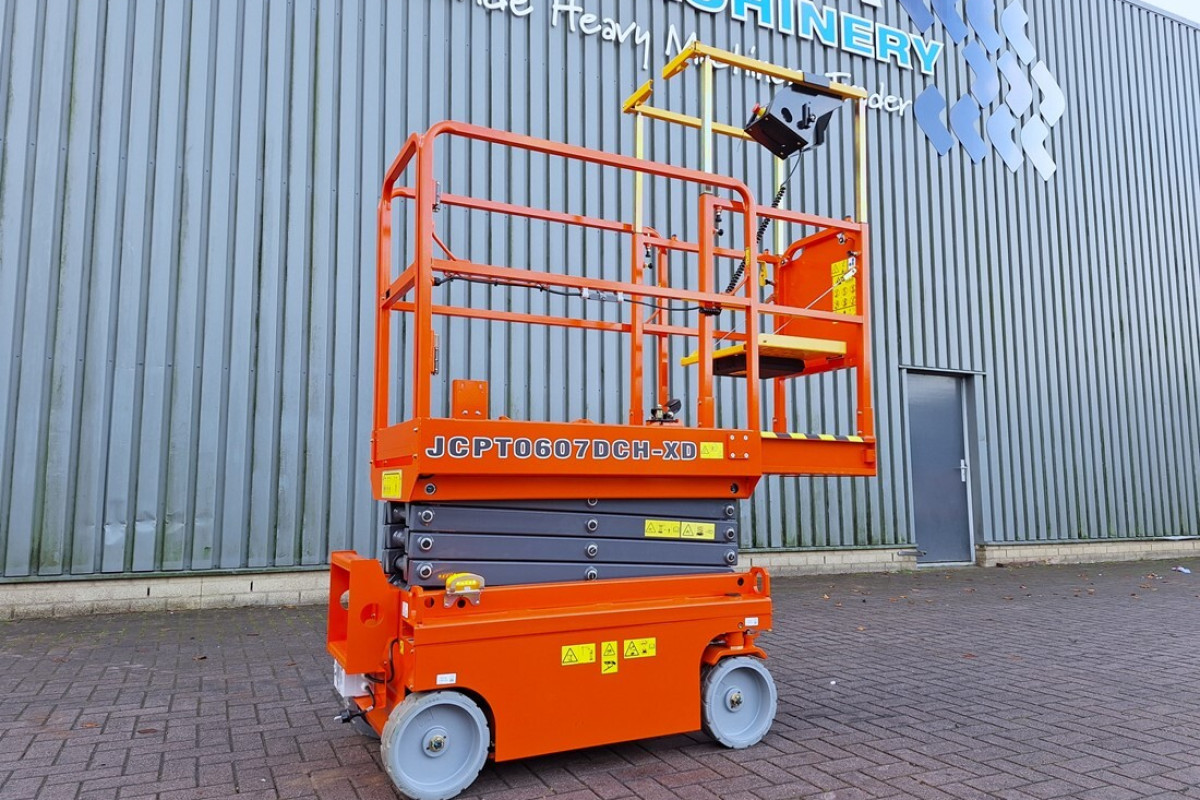

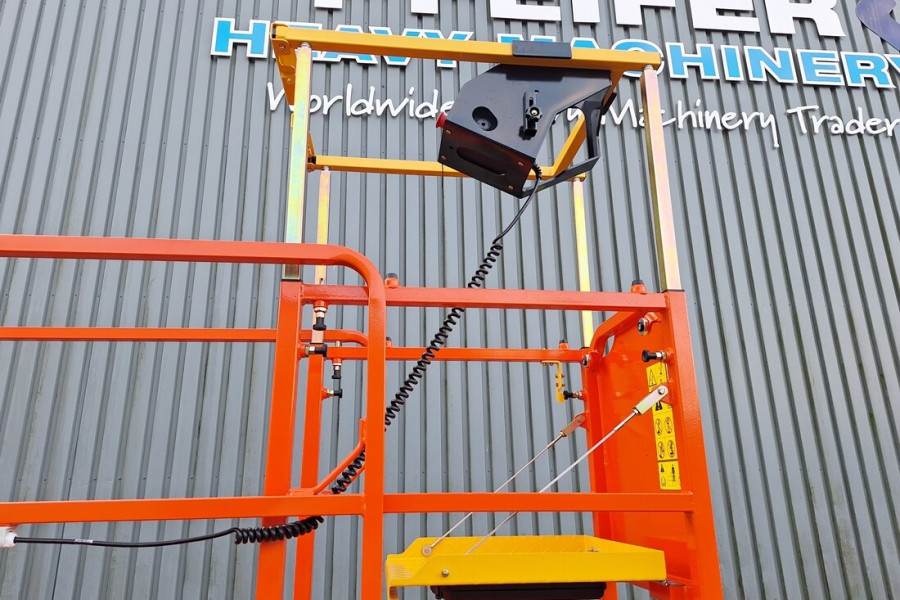

Maximum working height: 6 meters with the extra platform. (See Pictures)
Performance
Safe Working Load: 240kg
S.W.L On Extension: 100kg
Max. Occupants(Indoor/Outdoor): 2/1
Gradeability: 0.25
Travel Speed(Stowed): 4.0km/h
Travel Speed(Raised): 0.6km/h
Max. Working Slope(X/Y): 1.5°/3°
Up/Down Speed: 27/20sec
Overall Length(With Ladder): 1.46m
Overall Width: 0.76m
Overall Height(Rails Up): 2.08m
Overall Height(Rails Down): 1.71m
Platform Size(Length×Width): 1.29m×0.70m

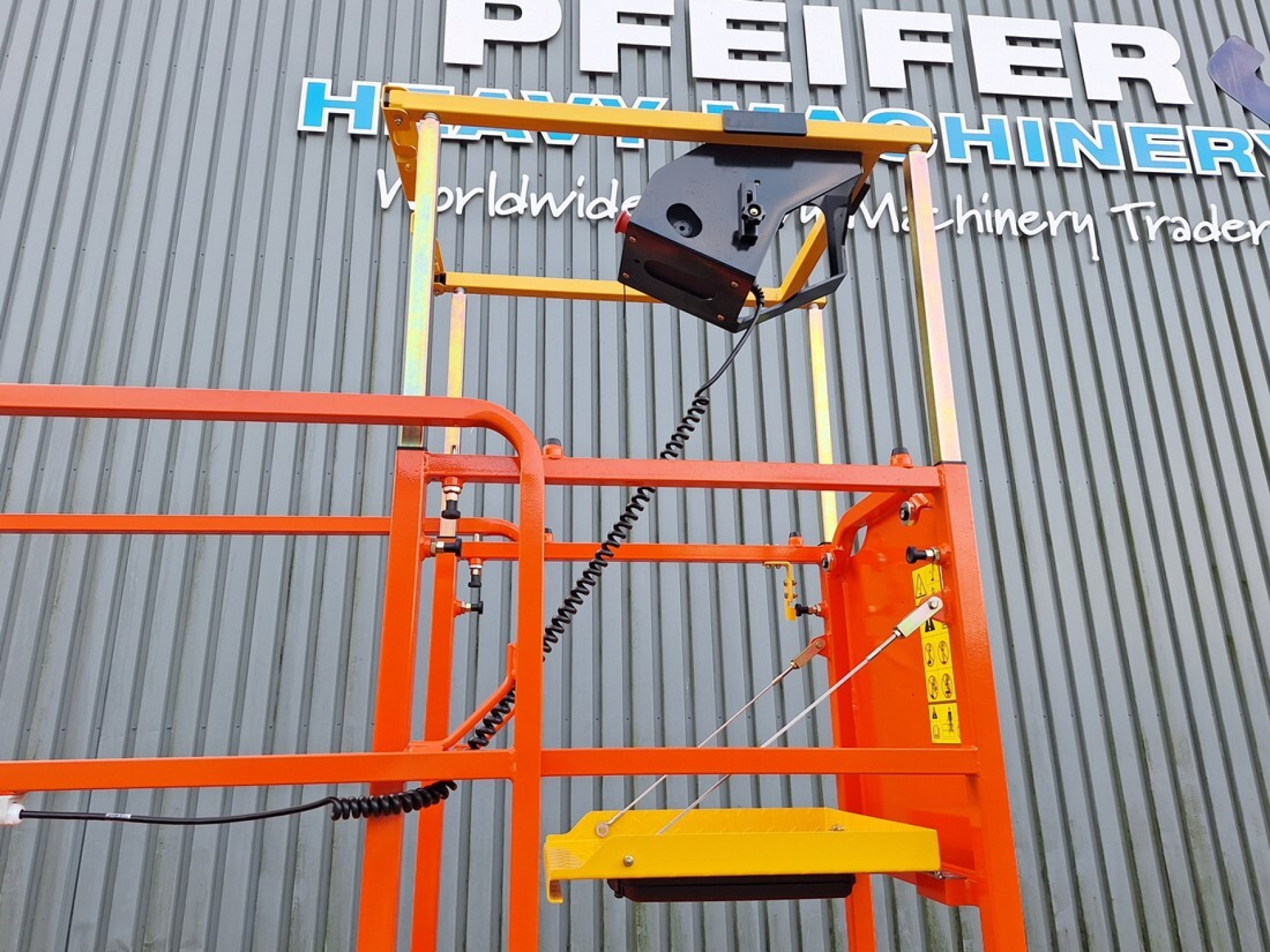

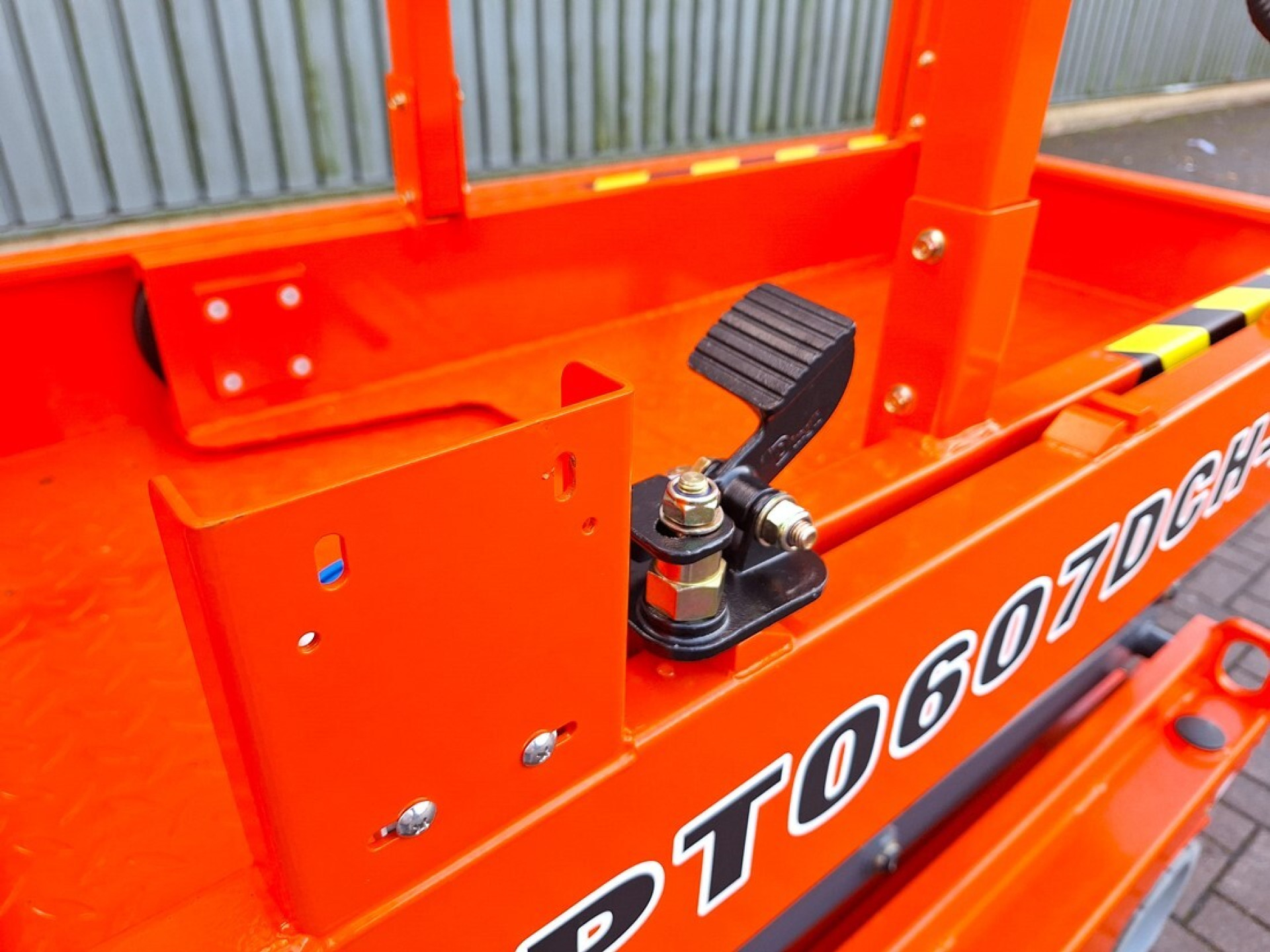

Platform Extension Size: 0.60m
Ground Clearance(Stowed/Raised): 0.07m/0.015m
Wheelbase: 1.06m
Turning Radius(Inside/Outside): 0.40m/1.55m

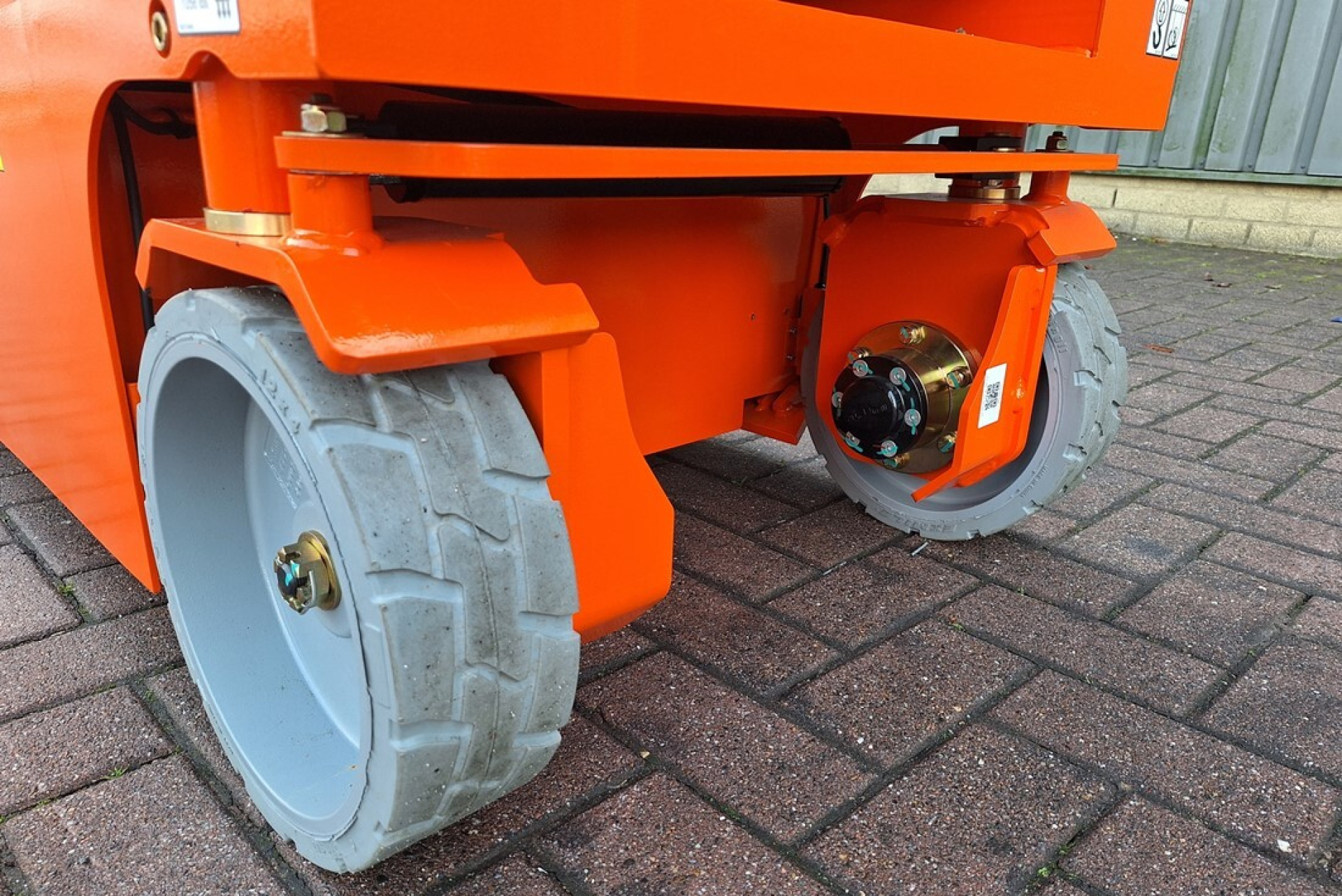

Tyres: ?305×100mm
Weight

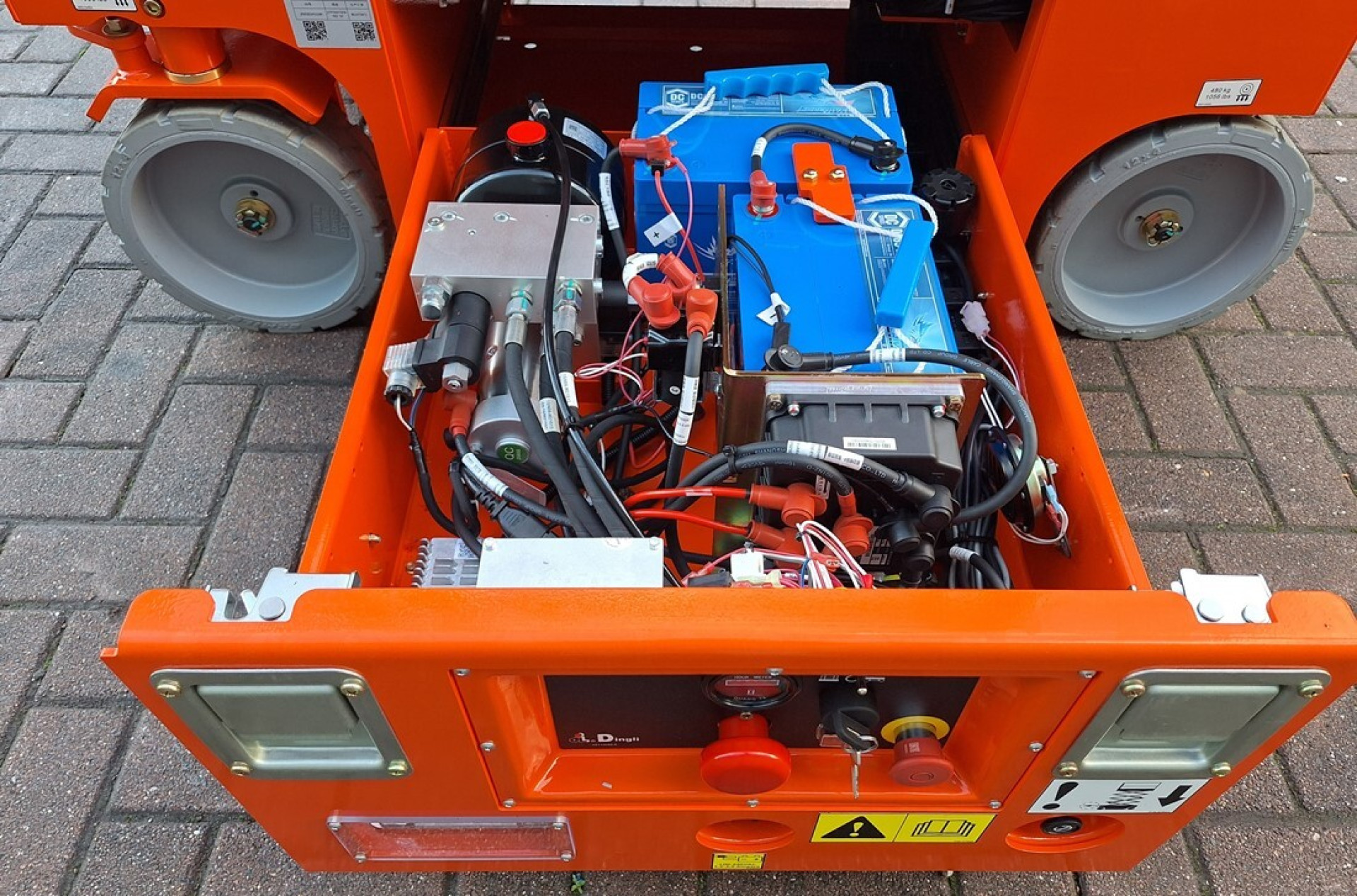

Overall Weight(Lead-acid Battery): 980kg

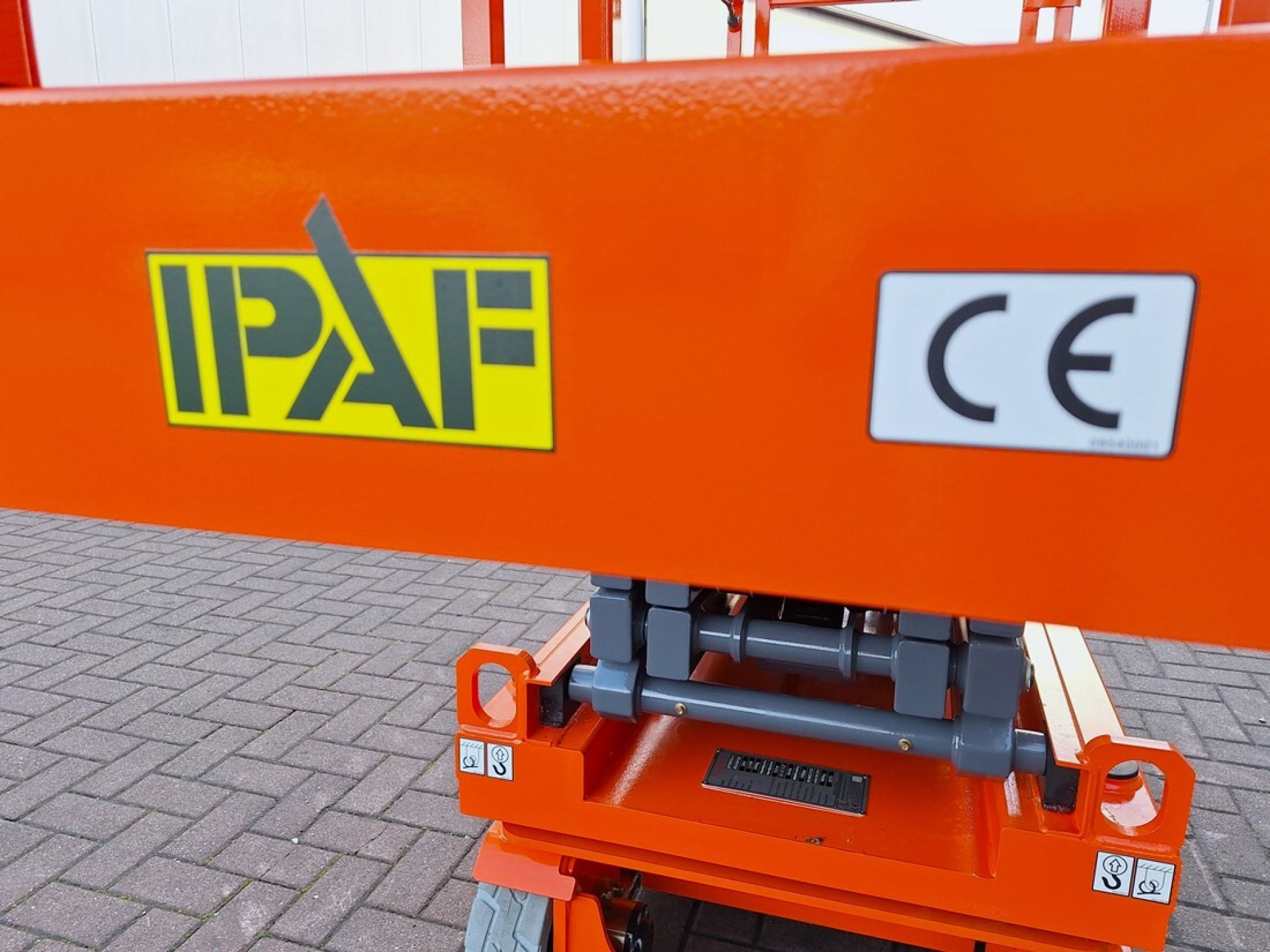

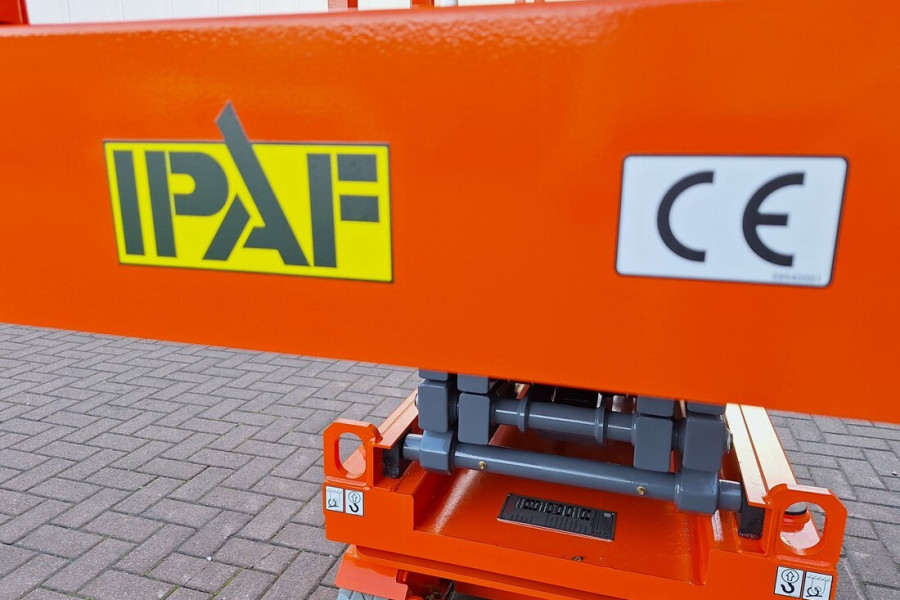

CE (Declaration of Conformity).
| Artikel Nummer | 63981 |
| Marke | DINGLI |
| Typ | JCPT0607DCH-XD |
