CC3800-1 | Diesel

Compact and powerful

650 tonne lifting capacity

With a lifting capacity of 650 tonnes at a radius of twelve meters and a maximum load moment of 9,152 tonne-meters, the Demag CC 3800-1 is strong enough, for example, to erect wind turbines with a hub height of up to 117 meters without the need for a Superlift system. As a result, it is an especially cost-effective choice for a broad range of assignments.

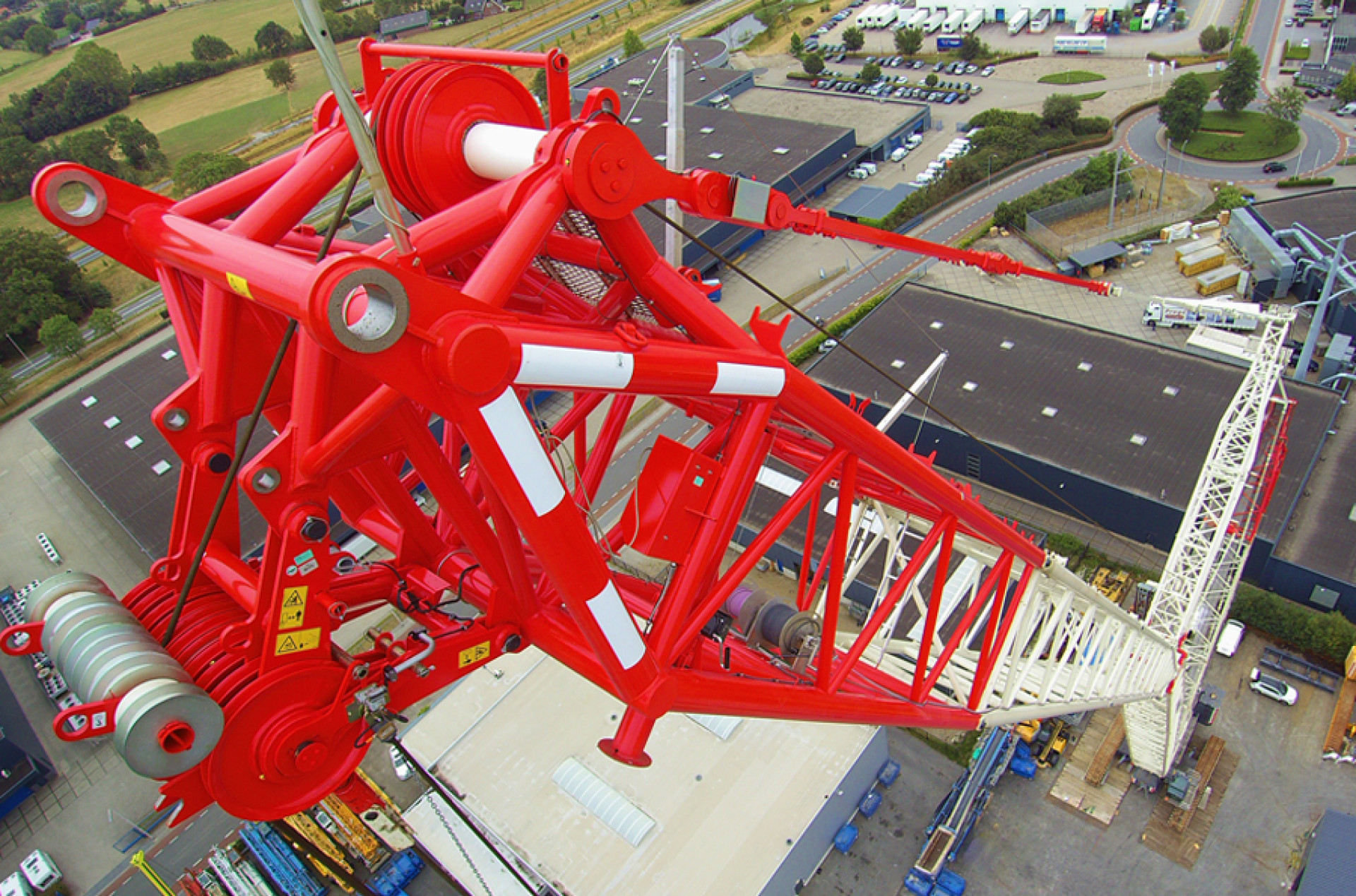

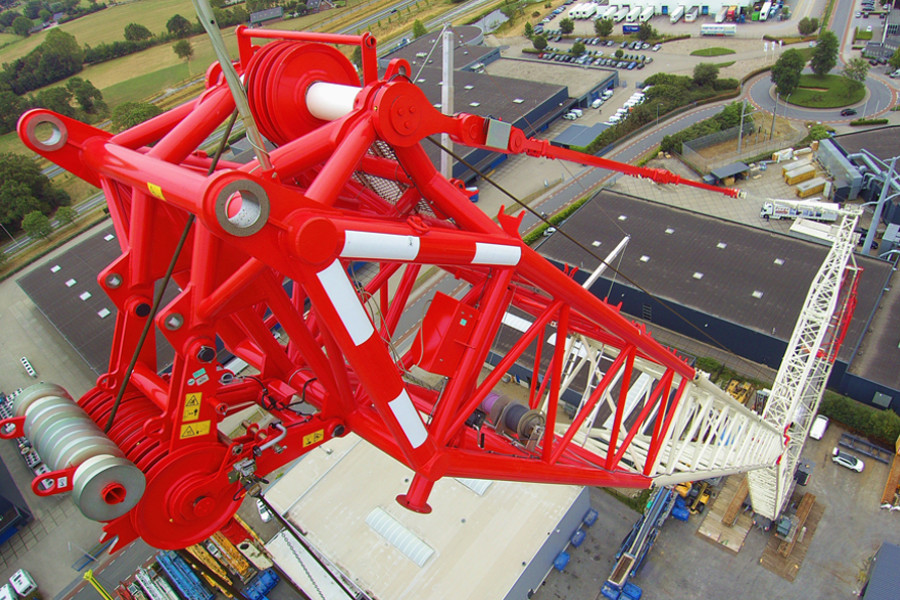

• Boom: SH type with SH-head and 650t sheave assembly.
• Runner: 2.0 m / 54 ton for (for SH, SH/LH, SW).
• Manufacturer: Terex-Demag
• Type: CC3800-1
• Building year: 2016
• Fuel: Diesel ( Ad-Bleu)
• Serial number: 36173.
• Working hours Superstr. +/- 2.600 h
• Loading / lifting capacity: 650.000 kg
• Engine: MTU / 6R1300 Euromot 4, Tier 4 Final,
• Equipped with Ad-Blue And A SCR Catalytic System.
•
•  Boom: SH type with SH-head and 650t sheave assembly.
•  Runner: 2.0 m / 54 ton for (for SH, SH/LH, SW).
• 125t, 3-sheaves, ramshorn hook Hook block: 125 t, 3-sheaves, ramshorn hook
• 54m tons 1-sheave single hook
• Undercarriage: Duo 1500 mm wide crawler shoes
• Automatic centralized lubrication
• Superlift Split Tray with quick coupling technology
• Counterweight: Upper: 205m ton / Lower Cental: 50m ton (Original Terex SL Counterweight available 285t)
• Terex IC-1: Electronic proportional valve pilot control integrated in stored-program control system incl. diagnostic system.
• Windkit Confugurations: SH+LF_1 / LH+LF_1 / LH+LF_3
• SSL+LF_1 / LSL+LF_2 / LSL+LF_3 / LSL_5 / LSL+LF_4
• Industrial Configurations: SH_1 / LH_1 / SW_1 / SSL_1 /
• LSL_1 / LSL_2 / SWSL_1 & SFSL_1 / LVSL_1
• 54m tons 1-sheave single hook
• Undercarriage: Duo 1500 mm wide crawler shoes
• Automatic centralized lubrication
• Superlift Split Tray with quick coupling technology
• Counterweight: Upper: 205m ton / Lower Cental: 50m ton (Original Terex SL Counterweight available 285t) Terex IC-1: Electronic proportional valve pilot control integrated in stored-program control system incl. diagnostic system.

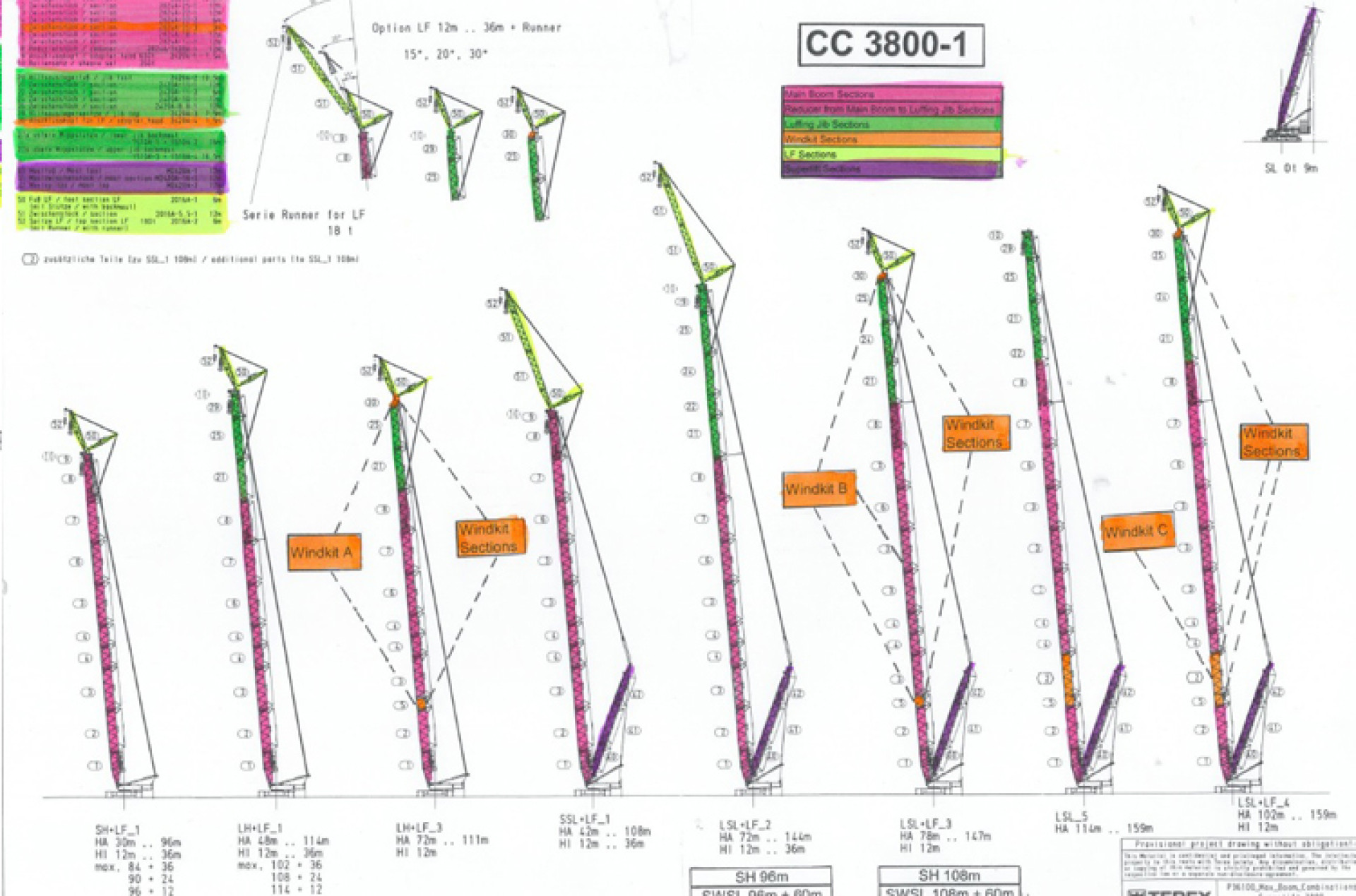

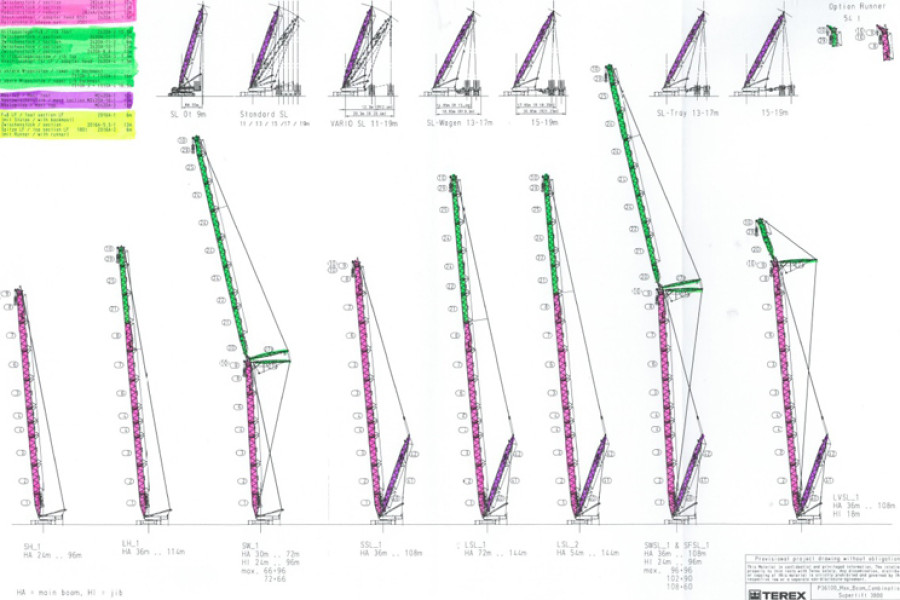

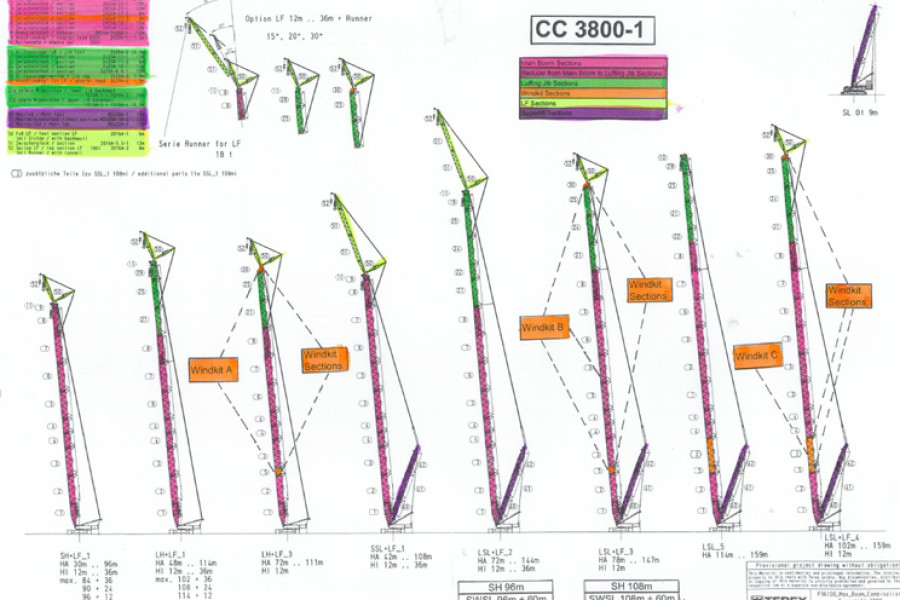

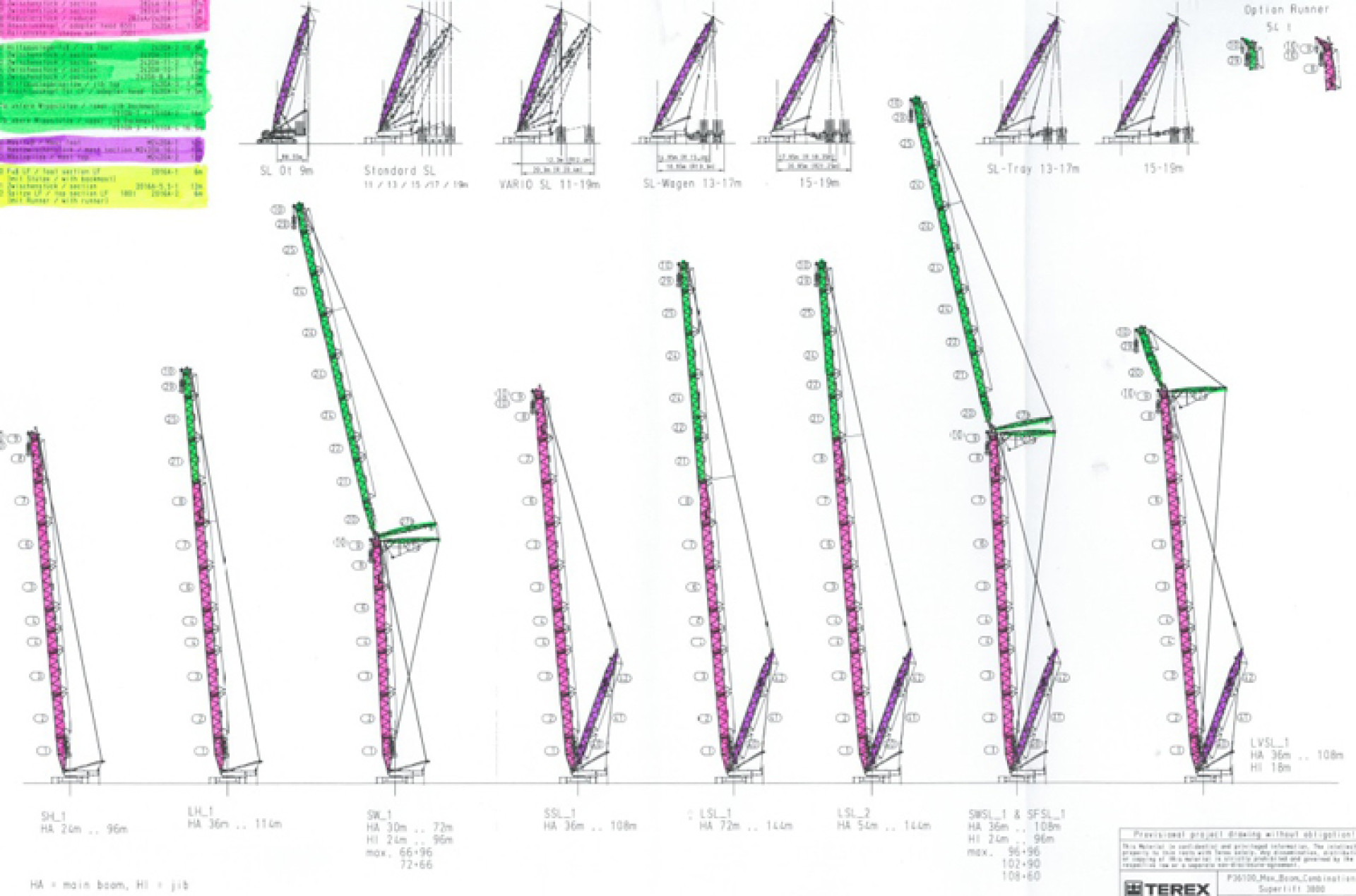

(See Pictures for all configurations)
Windkit Confugurations: SH+LF_1 / LH+LF_1 / LH+LF_3 / SSL+LF_1 / LSL+LF_2 / LSL+LF_3 / LSL_5 / LSL+LF_4
Industrial Configurations: SH_1 / LH_1 / SW_1 / SSL_1 / LSL_1 / LSL_2 / SWSL_1 & SFSL_1 / LVSL_1
